Hypernet → DeepSDF —
Twelve Phases to a Working Image-to-3-D Pipeline.

"What if 3-D geometry just is a neural network's weights?"

The project starts from a genuinely exciting hypothesis, inherited from prior lab work on hypernetworks and weight-space learning. If a 3-D shape is encoded as the parameters of a small MLP that defines its signed distance function — a network f_θ : ℝ³ → ℝ whose weights θ are the shape — then 3-D generation reduces to predicting MLP parameters, and image-to-3-D reduces to high-dimensional vector regression from an image. The framing is representation-free: no triplanes, no voxels, no mesh topology. The shape is the network, and it composes naturally with diffusion models.

The real research question Topic 41 set out to answer: what architectural choices matter when you train image-to-3-D systems with ~10³ shapes rather than the ~10⁵–10⁷ of large published systems? Data scarcity — a few hundred to a few thousand domain-specific shapes — is the realistic operating regime for most research and applied work, and it is the regime the Apple Maps procedural-modelling thesis line lives in.

The honest answer the project arrived at, after eight architectural iterations of the weight-space line, is the weight-space hypothesis does not survive at this data scale — and the value is in the precision of that finding. The failures localise to one structural cause (§03), and that cause pointed straight at the pivot (§05) that works. The write-up's own framing: "the failure modes are themselves the contribution."

A research archive, not a single experiment.

The project is structured as twelve numbered phases, each a directory in the public repository. Phases 0–5 build the foundation. Phases 6–10 are the image-conditioned weight-space line — and all five fail. Phases 11–12 are the pivot — and both work. The three architectural families under test: (1) per-shape neural-network weight prediction via diffusion in raw 54,785-dimensional weight space; (2) weight-space autoencoders that compress per-shape MLP weights into low-dimensional codes for downstream diffusion; (3) DeepSDF-style joint optimisation of a single shared decoder with per-shape latent codes.

976 watertight Objaverse-LVIS shapes, rendered and SDF-sampled.

Every phase shares the same data foundation. The dataset is a 1,000-shape curated subset of Objaverse, filtered to the LVIS category vocabulary — common objects (table, chair, lamp, bottle), wildlife (dog, lion, beetle), tools (toothbrush, sharpie, pacifier), vehicles (cabin_car, surfboard), and long-tail oddities (banjo, escargot, signboard, Tabasco_sauce). After watertight conversion and SDF sampling, 976 shapes came through clean across both stages and form the working set. Each shape carries an integer obj_idx (0–975), its original Objaverse hash UID, and an LVIS category label, bidirectionally mapped in manifest.json.

Eight iterations of careful ablation. The diagnostic is the contribution.

Phase 1 trains one ReLU+PE decoder per shape — point → positional encoding (6 bands → 39-dim) → four Linear(128)+ReLU layers → Linear(1), 54,785 parameters each. ReLU+PE was chosen over SIREN deliberately: in-house perturbation benchmarks showed ReLU+PE decoders tolerate much larger weight perturbations before reconstruction collapses (relative σ ≥ 0.34 versus SIREN's ≤ 0.17) — and a downstream diffusion model will produce noisy weight vectors. All 976 decoders are warm-started from a single anchor (trained on obj_0000, a coffee table), because warm-starting keeps every per-shape decoder in the same permutation neighbourhood — necessary for the weight-space interpolation the prior topic-03 work depended on. Final per-shape losses: median 0.00185, 95th-percentile 0.00409.

Phases 6–10 are the image-conditioned weight-space line. Phase 6 trains a ~132 M-parameter Diffusion Transformer to predict the 54,785-dim weight vector from a single image; it chunks the weight vector into 8 tokens, cross-attends to view tokens (DINOv2 CLS ⊕ sinusoidal pose embedding), uses a cosine T = 500 schedule with x₀-prediction and DDIM 50-step sampling. Phase 7 extends to multi-view (K ∈ [1, 8]). Both collapse. Phases 8 and 9 are ablations; phase 10 is the autoencoder rescue attempt. All five fail.

Phase 10 — the autoencoder trap: strong numbers, broken meshes

The phase-10 autoencoder compresses weight residuals (54,785 → 128 or 256 dims) and is numerically excellent — final MSE 2.28 × 10⁻⁵, cos(rec, true) mean 0.9965, and the latent-space pairwise cosine drops from 0.96 all the way to 0.07 (different shapes mapped to near-orthogonal directions). By every metric an autoencoder optimises, this is excellent compression. The meshes say otherwise. The residual 0.3–0.5 % error is not uniformly distributed — it lands on different dimensions for different shapes, and ReLU+PE decoders are non-uniformly sensitive to which dimensions absorb it. The figures below are the actual phase-10 results from the released checkpoints.

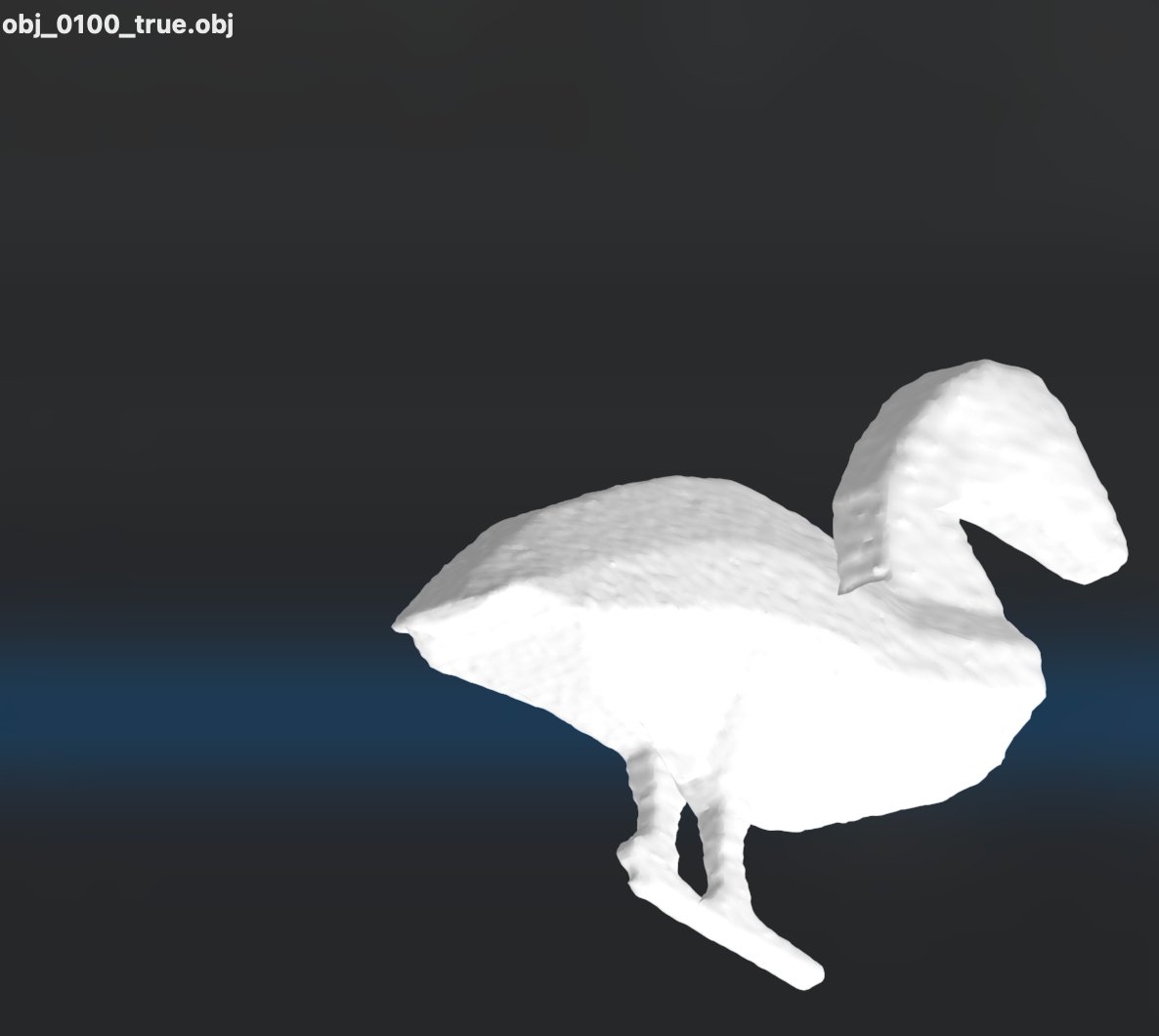

obj_0100 turkey · ground truth. A watertight Objaverse-LVIS mesh with thin legs and a distinct neck and head. Its phase-10 AE reconstruction loses the neck, head and legs at cos = 0.994 — the topology is gone even though the number is excellent.

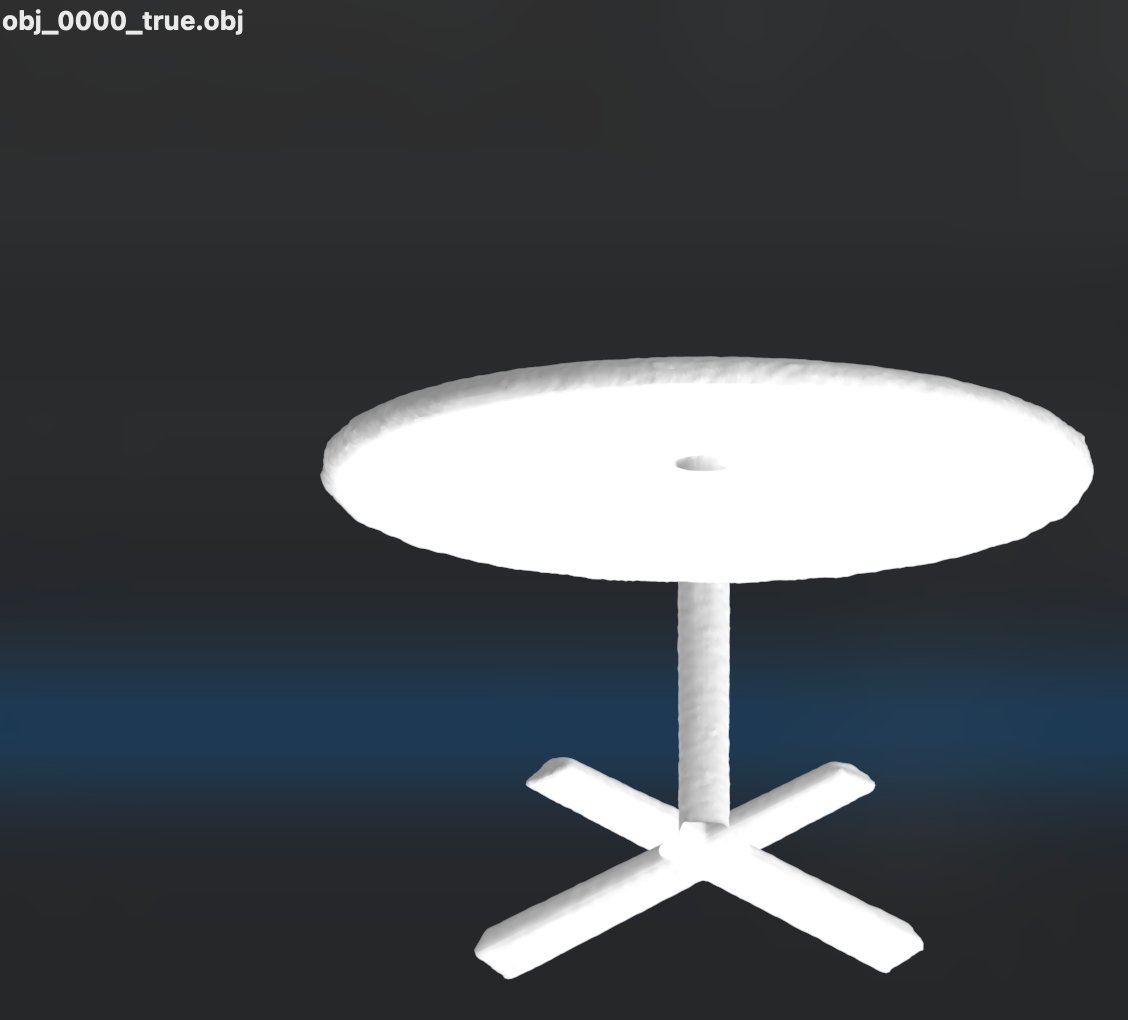

obj_0000 table · ground truth. The coffee table the warm-start anchor was trained on. Its phase-10 AE reconstruction failed marching cubes entirely — the decoded SDF had range [−1.07, −0.06], no zero crossing, no surface at all.

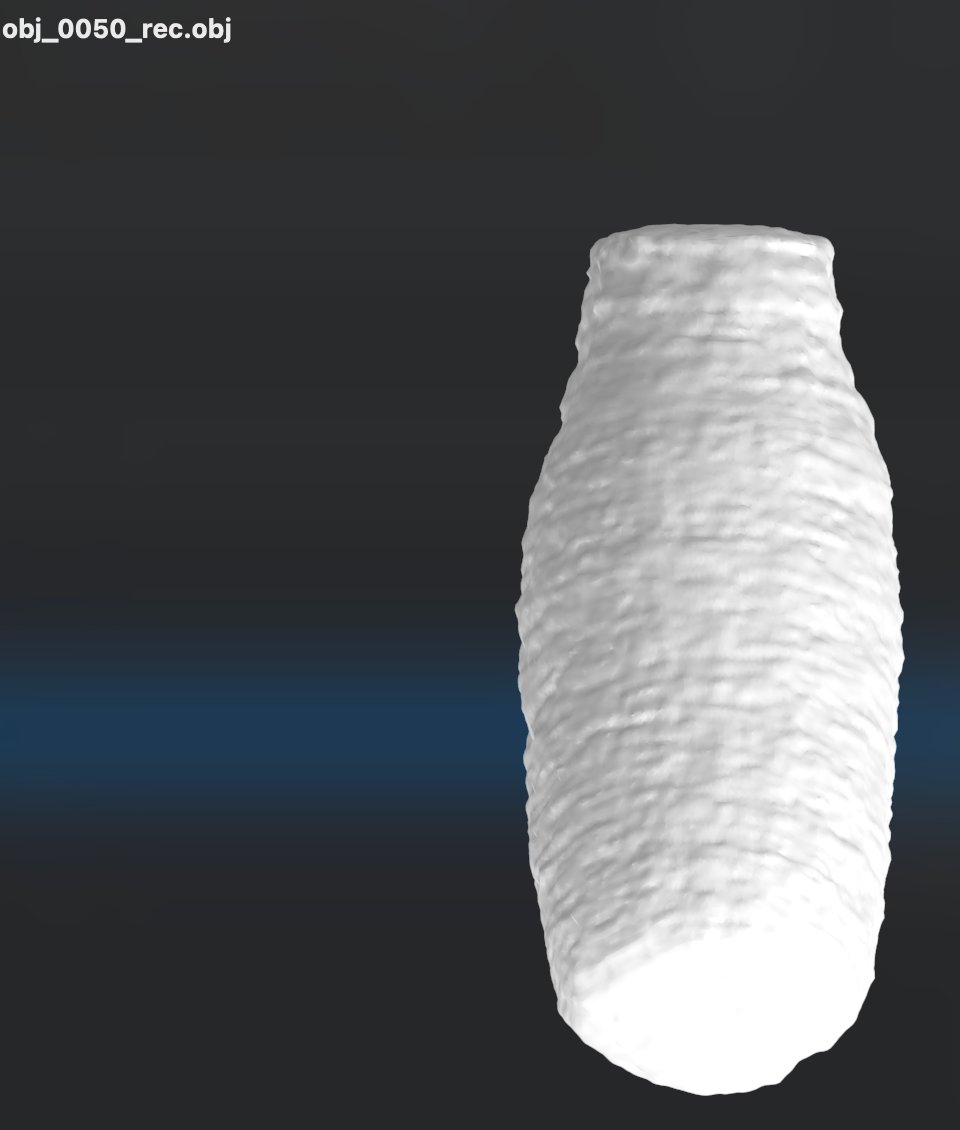

obj_0050 vase · AE reconstruction. One of the few shapes that survives. The vase's simple convex geometry means the reconstruction error lands on dimensions that produce small surface displacements rather than topology changes — it still reads as a vase, just rougher.

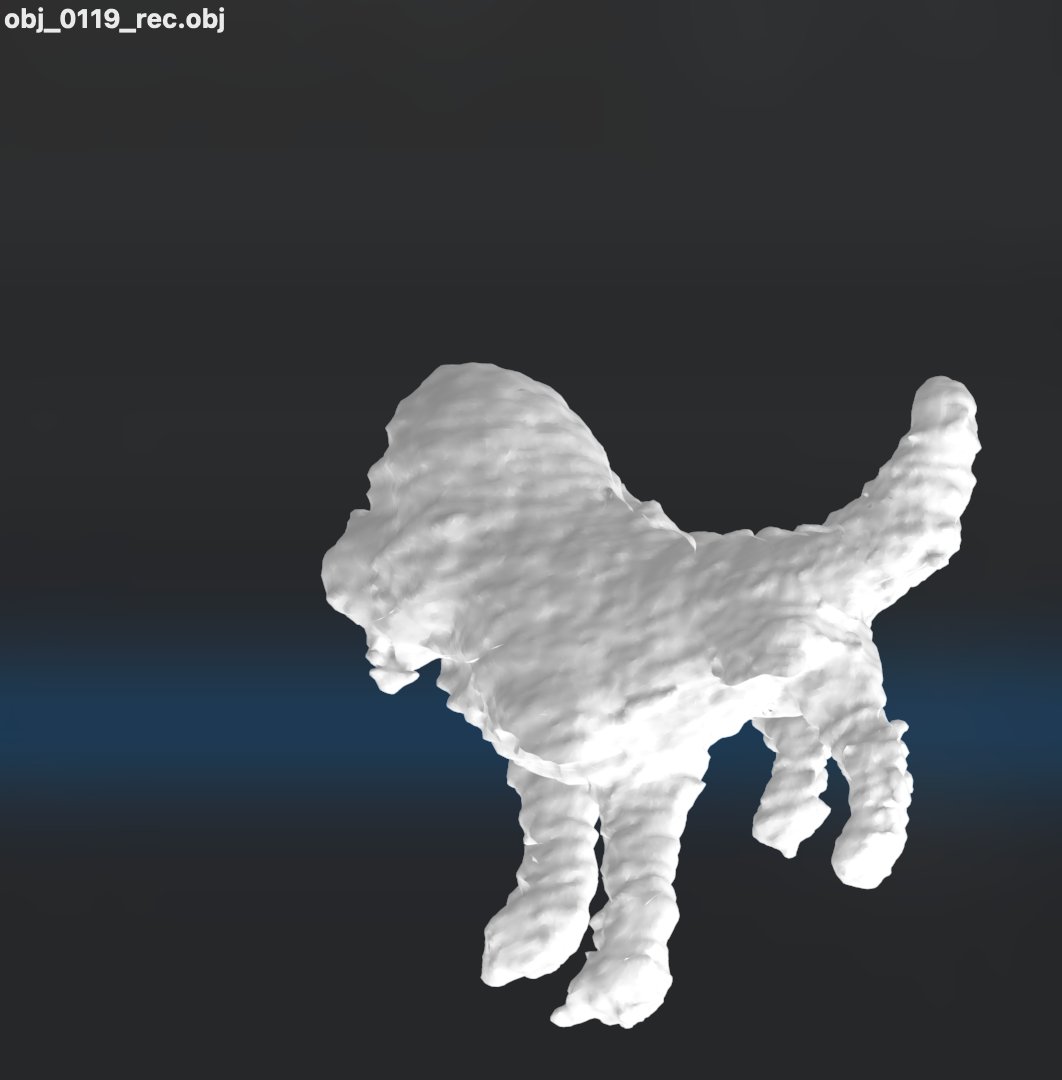

obj_0119 · AE reconstruction. A four-legged animal — lumpy and surface-rough, but the gross topology (four legs, body, tail) holds. Note: this file is named turkey_rec in the repo but actually renders obj_0119_rec.obj — labelled here by content.

DeepSDF shared decoder + image-conditioned latent diffusion.

Phase 11 is DeepSDF. A single shared decoder — 8 hidden ReLU layers of width 512, with a DeepSDF-style skip connection that re-injects the input at the middle layer, ~1.95 M parameters — takes concat(latent₆₄, PE(point)₃₉) = 103 input dimensions and predicts an SDF scalar. Each shape's 64-dim latent is a learnable parameter, initialised from 𝒩(0, 0.01²) and optimised jointly with the decoder (separate Adam learning rates — 5 × 10⁻⁴ decoder, 10⁻³ latents — plus a 10⁻⁵ L2 regulariser on the latent norms). Training objective is clamped-L1 on the SDF, 4 shapes and 8,192 points per shape per step.

Phase 12 trains the image-conditioning head. The target is now the clean 64-dim latent, not a thin weight residual. A Diffusion Transformer — d_model 384, 4 layers, 6 heads, ~10 M parameters (vs Phase 7's 132 M — the target is 800× smaller) — treats the latent as a single token, cross-attends to multi-view tokens (DINOv2 CLS-768 ⊕ 64-dim sinusoidal pose embedding), with AdaLN modulation on the diffusion timestep. Cosine T = 500 schedule, x₀-prediction, K ∈ [1, 8] views sampled per batch, 15 K training steps. CFG/pose dropout is disabled — Phase 9 confirmed it was never the cause of the collapse.

Phase 11 — the two pilots: capacity is the difference

The first phase-11 pilot used a small decoder — hidden 256, 4 layers, 800 epochs. The loss numbers looked healthy (SDF L1 mean 0.00613, latent pairwise cos −0.04 — essentially orthogonal) but the meshes were blob-quality: the decoder lacked the capacity to represent 20 distinct shapes through a 64-dim latent.

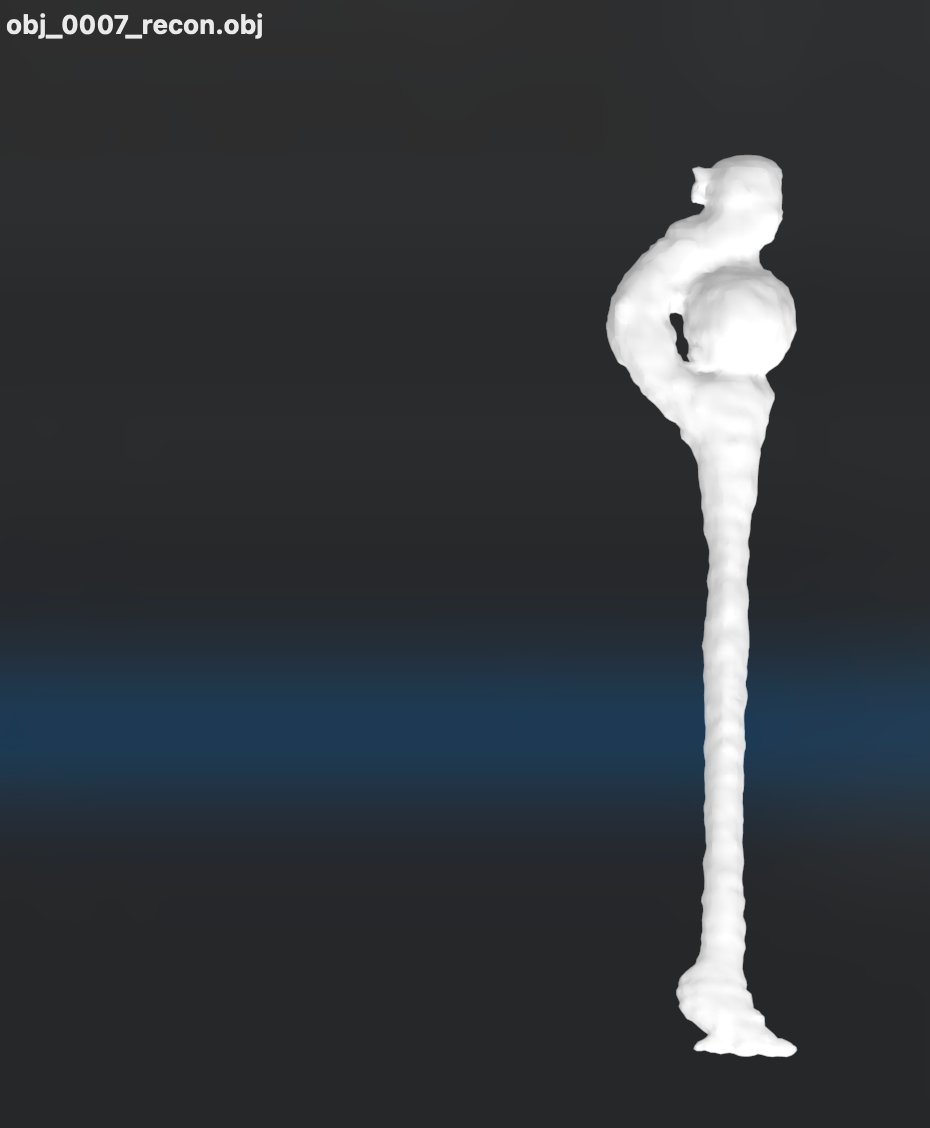

Initial pilot · obj_0007. Broken. A thin column with a bulbous mass — the decoder (256×4, 800 ep) cannot resolve the shape.

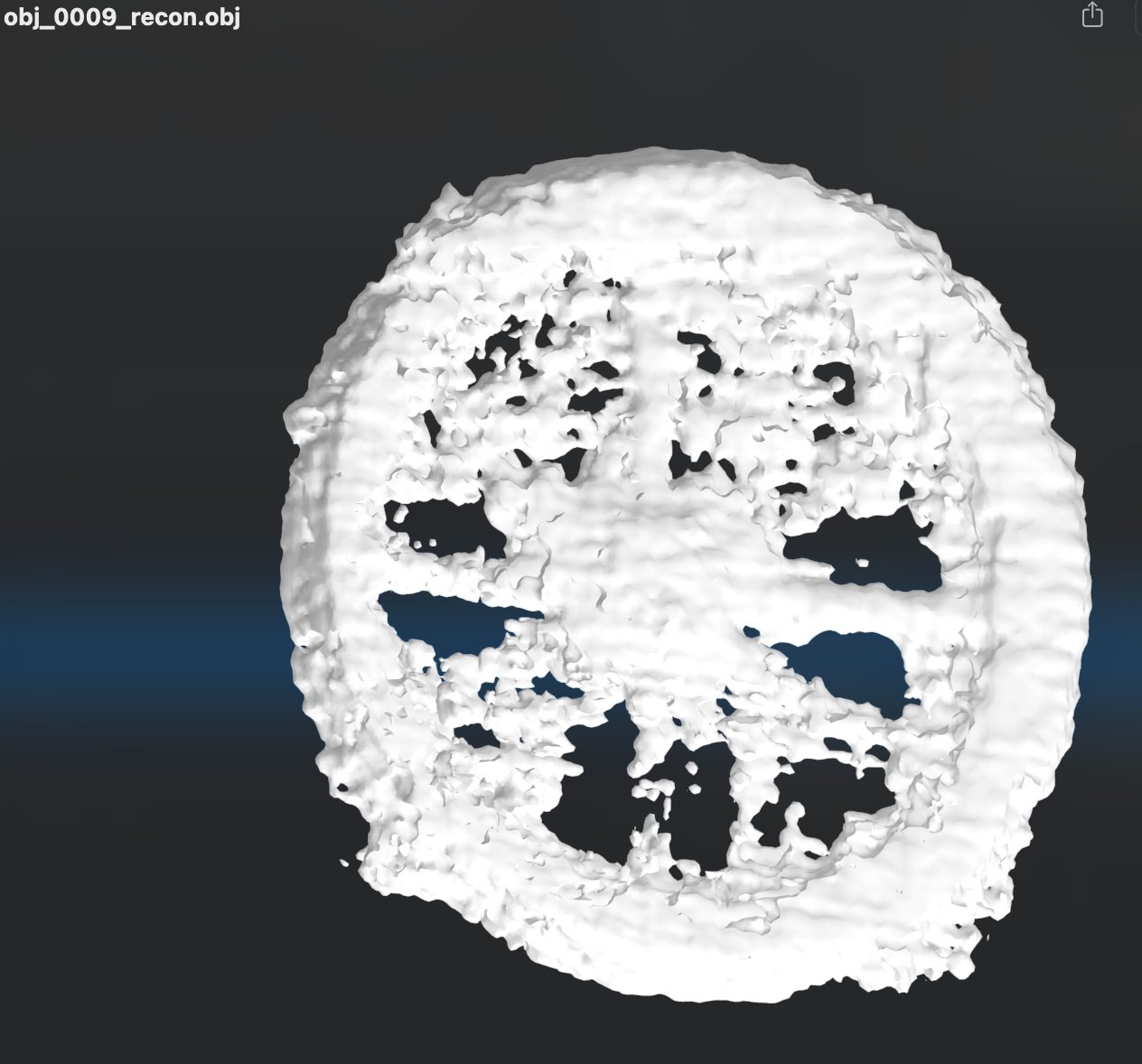

Initial pilot · obj_0009. Broken. A pitted sphere full of spurious holes — nothing like the wagon wheel it should be.

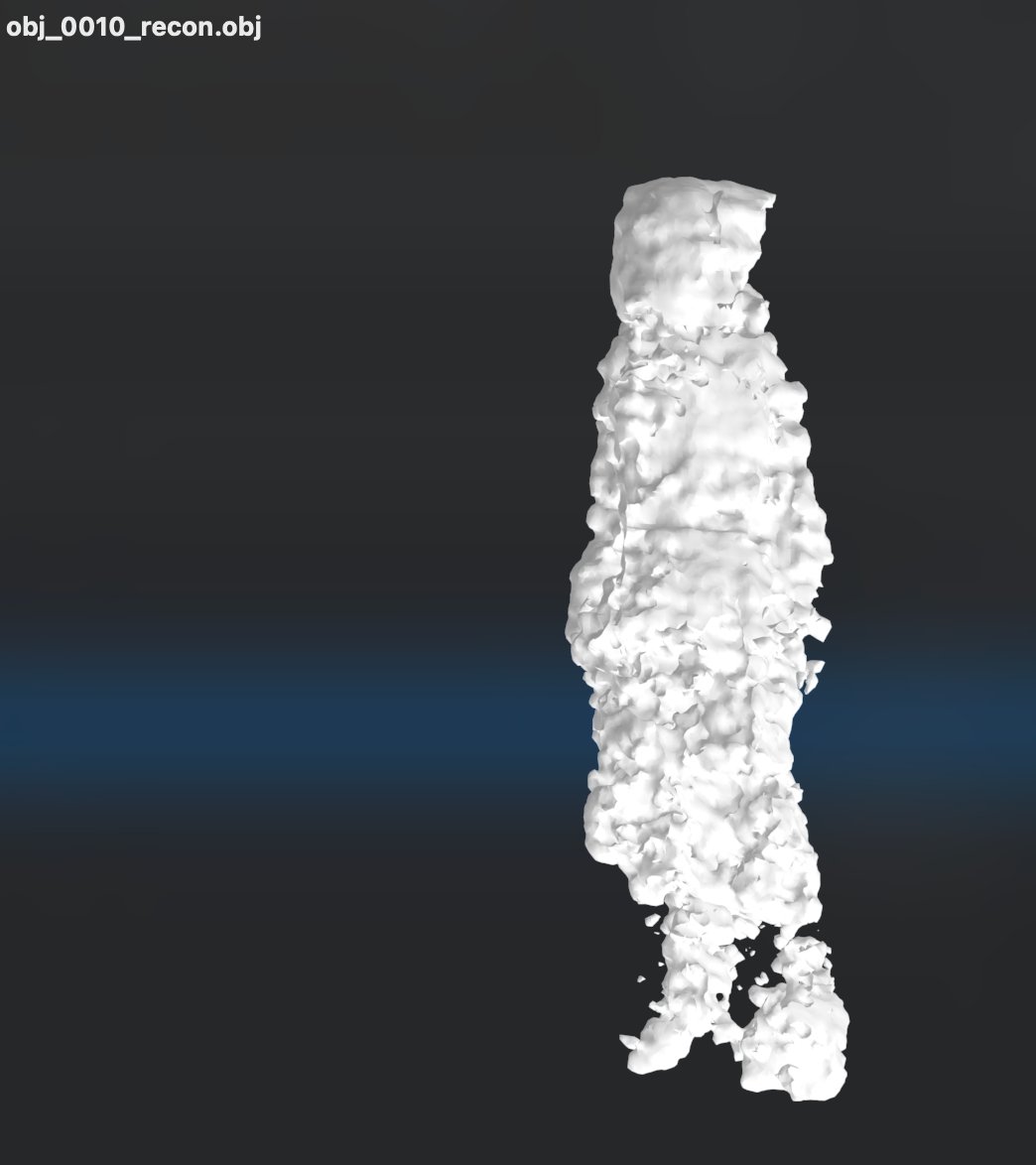

Initial pilot · obj_0010. Broken. An amorphous column. Loss values "looked reasonable" — the meshes did not.

Increasing decoder capacity to hidden 512 × 8 layers (~1.95 M params) and training for 4,000 epochs produces clean reconstructions across all 20 pilot shapes — SDF L1 mean drops from 0.00613 to 0.00051, max to 0.00090, in ~13 minutes. Same data, same 64-dim latent — capacity was the difference.

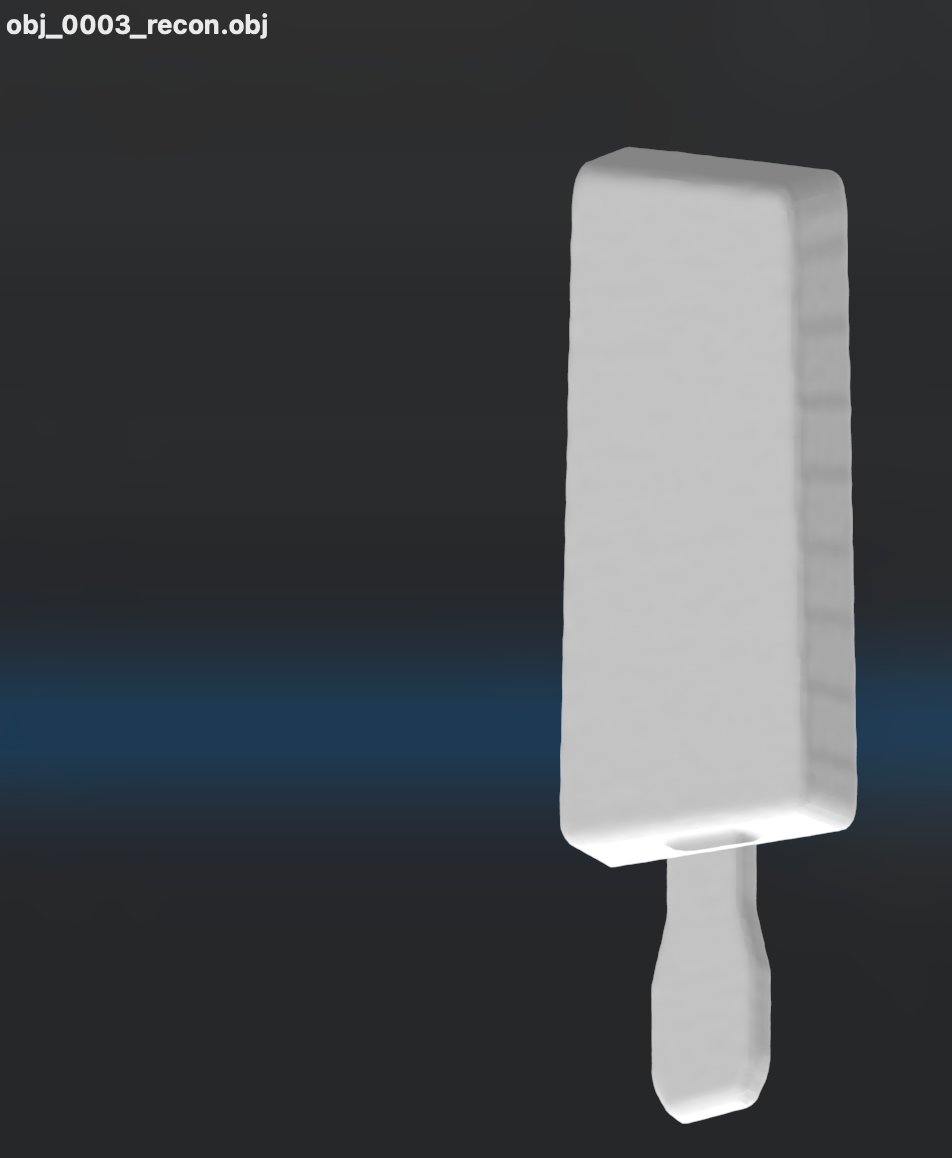

Scaled pilot · obj_0003 sword. Clean. Decoder 512×8, 4000 epochs. The flat blade and the handle are both crisp.

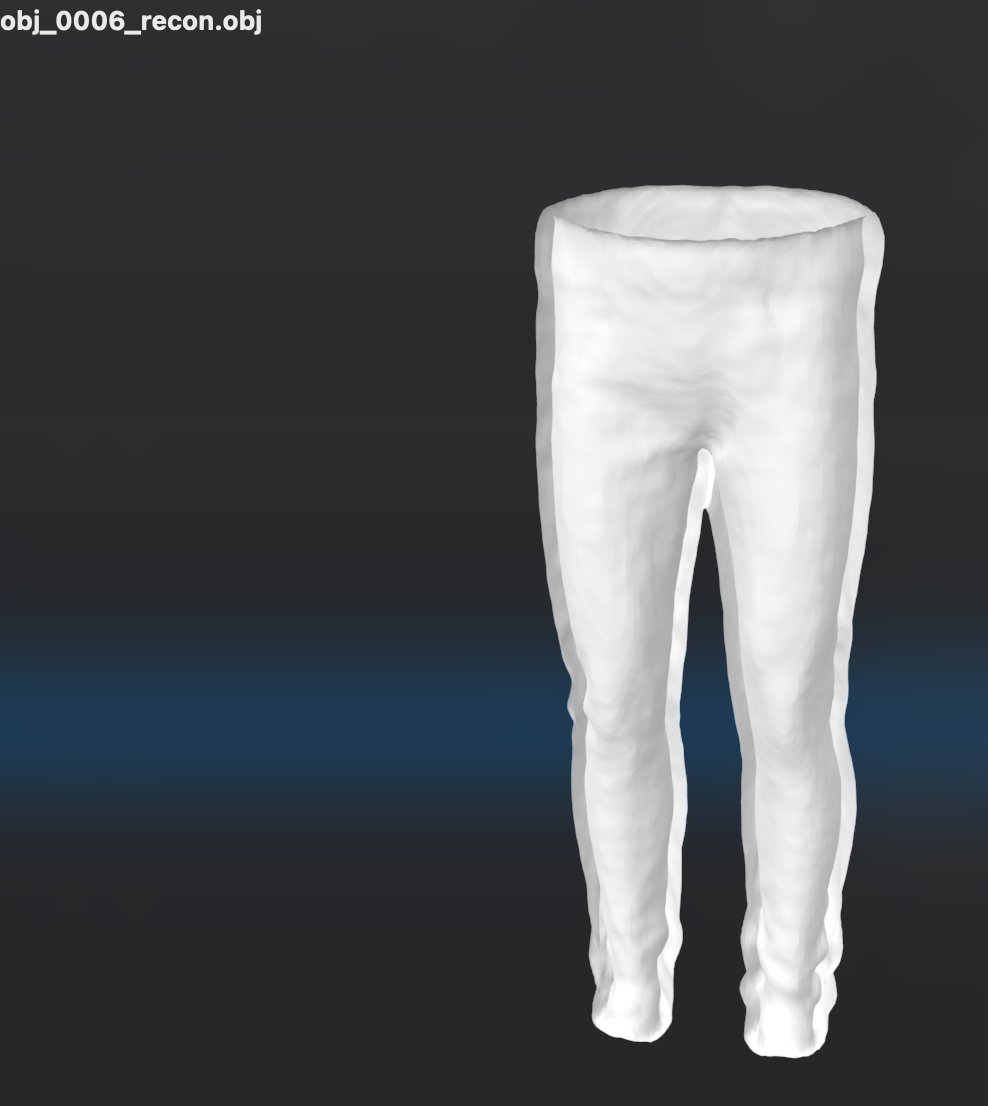

Scaled pilot · obj_0006 pants. Clean. The two legs, waist opening and the hollow interior are all preserved.

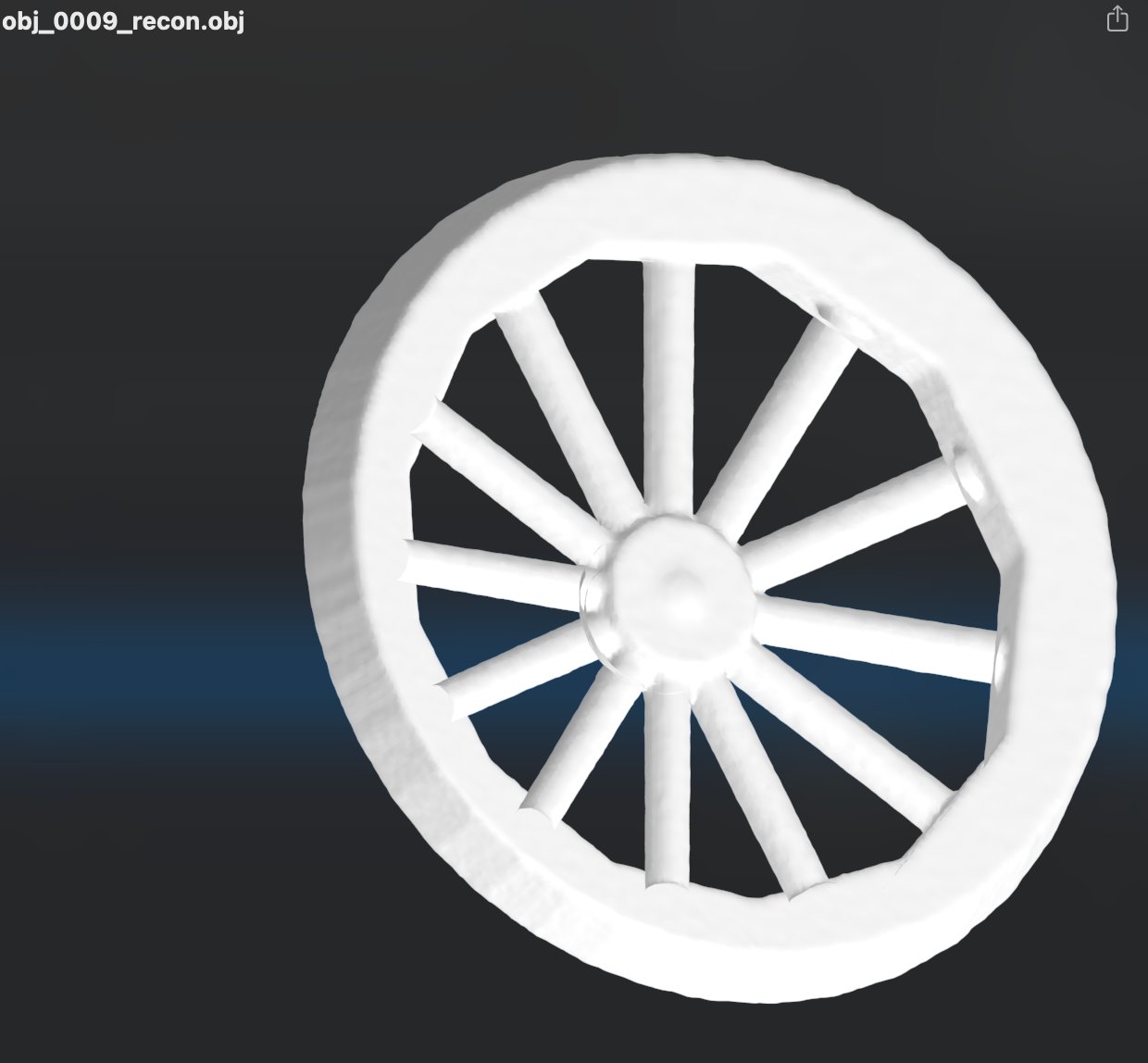

Scaled pilot · obj_0009 wagon wheel. Clean. Twelve-plus spokes, the central hub and the outer rim — the razor-sharp thin geometry that failed in every weight-space phase.

Scaling to all 976 shapes (same 512×8 architecture, 1,500 epochs, ~140 min) keeps every shape clean: SDF L1 mean 0.00212, max 0.00593 — about 4× the 20-shape mean, but no shape catastrophically fails. The latent pairwise cosine rises only to 0.12 — the 64-dim space has room for 976 distinguishable shapes.

Perfect recall. And — at 976 shapes — genuine OOD generalization.

On training shapes the phase-12 pipeline has essentially perfect recall. The 20-shape pilot reaches a training-loss EMA of 8 × 10⁻⁶ and cos(pred, true) = 1.0000 for every tested shape, with a > 0.4 cosine margin to the second-nearest training latent. At 976 shapes the training EMA is 5.1 × 10⁻³ — deliberately higher, because the model can no longer memorise — and recall is still strong: obj_0009 the wagon wheel round-trips cleanly through the full image → DINOv2 → DiT → decoder → marching-cubes pipeline.

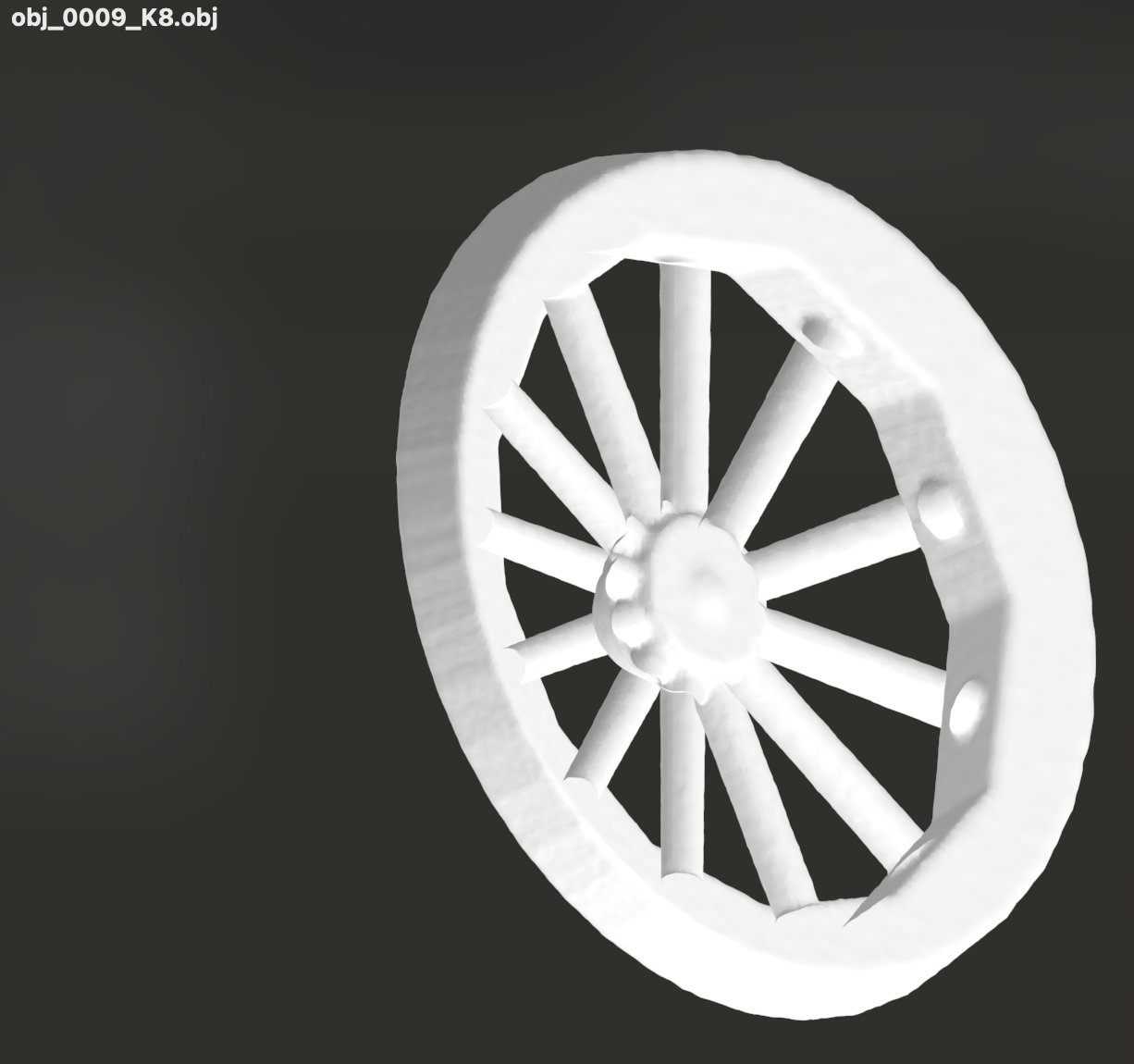

Recall · obj_0009 wagon wheel · K = 8. Full pipeline. Image → DINOv2 → DiT → 64-dim latent → DeepSDF decoder → marching cubes. Spokes, hub and rim all survive the round trip.

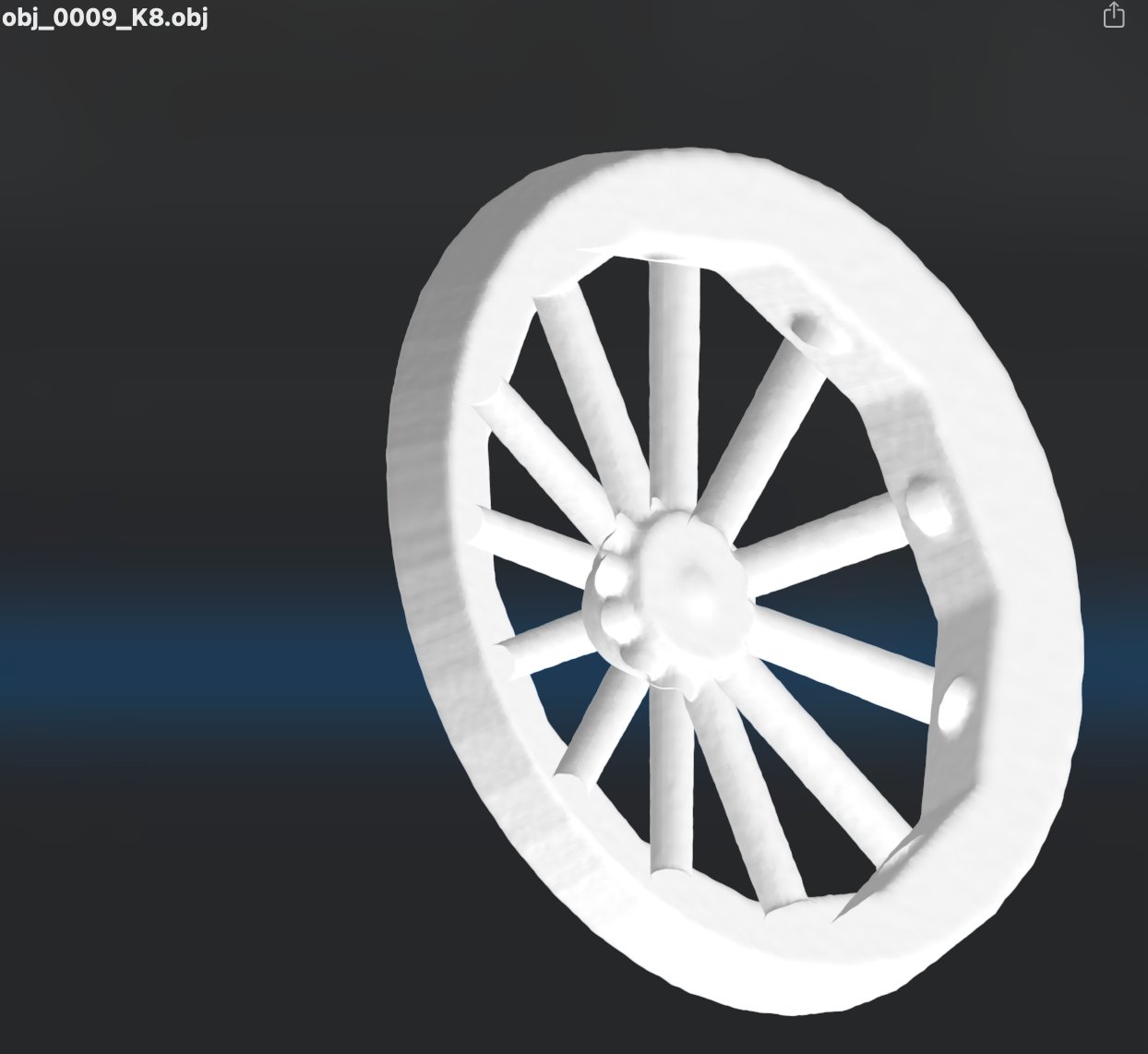

Recall · obj_0009 wagon wheel · alternate render. Comparable to the direct latent decode. The thin-geometry recall is the discriminating test — every weight-space phase destroyed exactly this.

Out-of-distribution — the central result

The most important result of the project is the qualitative shift in OOD behaviour between scales. At 20 training shapes the model is a pure nearest-neighbour retriever in DINOv2 feature space: feed it a tunnel and it returns a clean — but completely wrong — humanoid, because there is no "tunnel-like" region in a 20-shape latent space for it to land in.

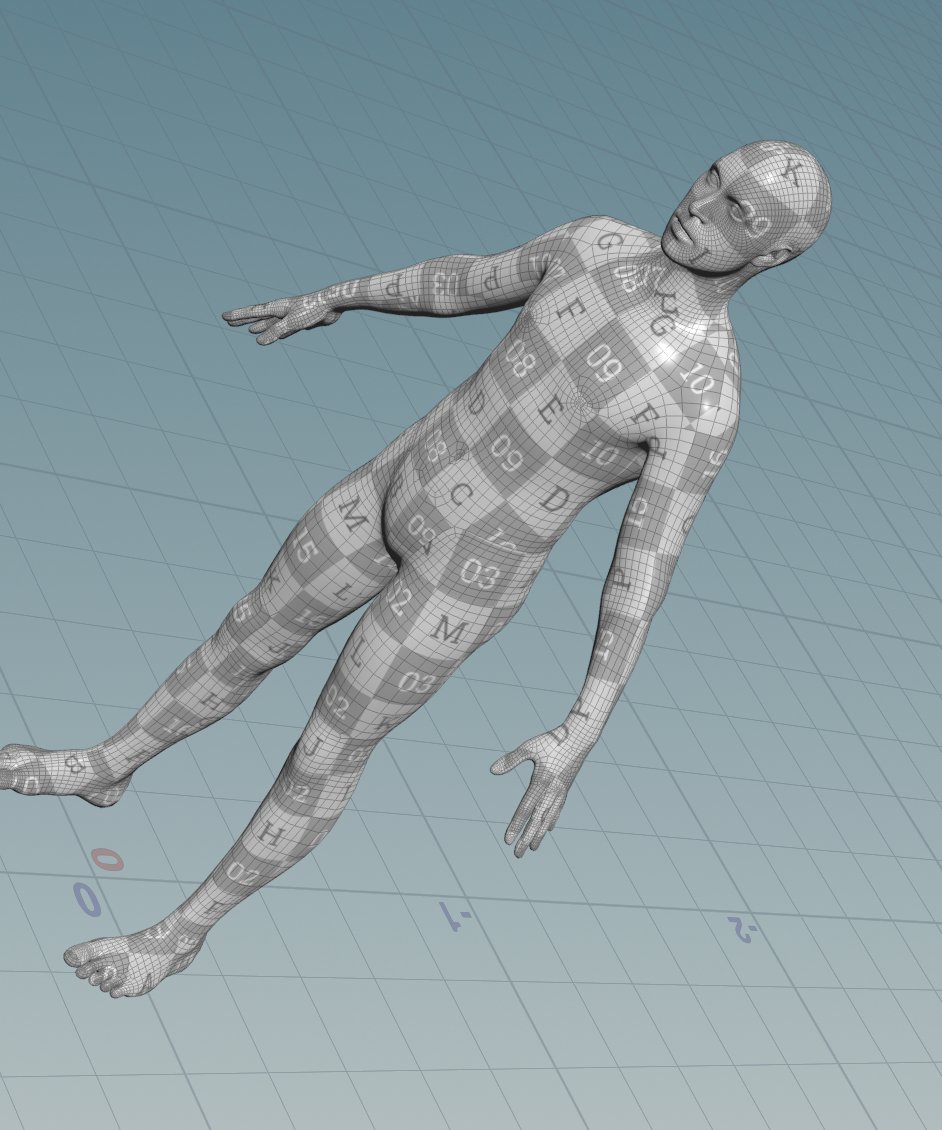

20-shape OOD · tunnel input → humanoid output. Pure retrieval failure. The 20-shape model snaps the tunnel input to its nearest training shape (a humanoid, top-1 cos 0.966) — the output is clean because it is a memorised training shape, and bears no resemblance to a tunnel.

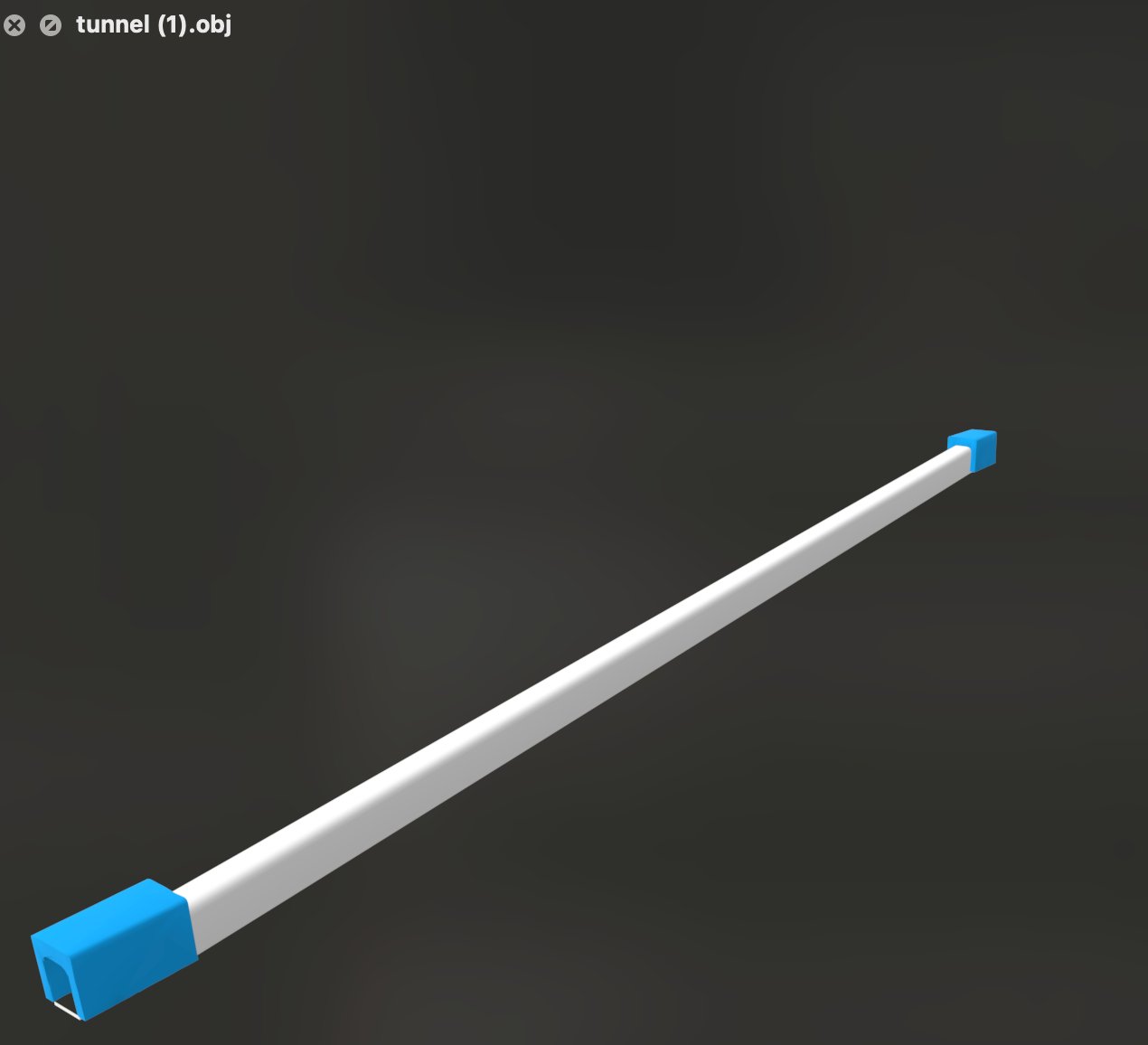

The tunnel input. A long thin rod (~3,900 verts), never seen in training. Fed to the 976-shape model below.

At 976 shapes the latent space has acquired enough semantic structure that DINOv2 features can navigate it. The same three never-seen inputs — a posed humanoid, a thin tunnel, a head-and-shoulders bust — now produce category-appropriate output. The surfaces are rough; the topology is right.

input · never seen

phase-12 output · K=8

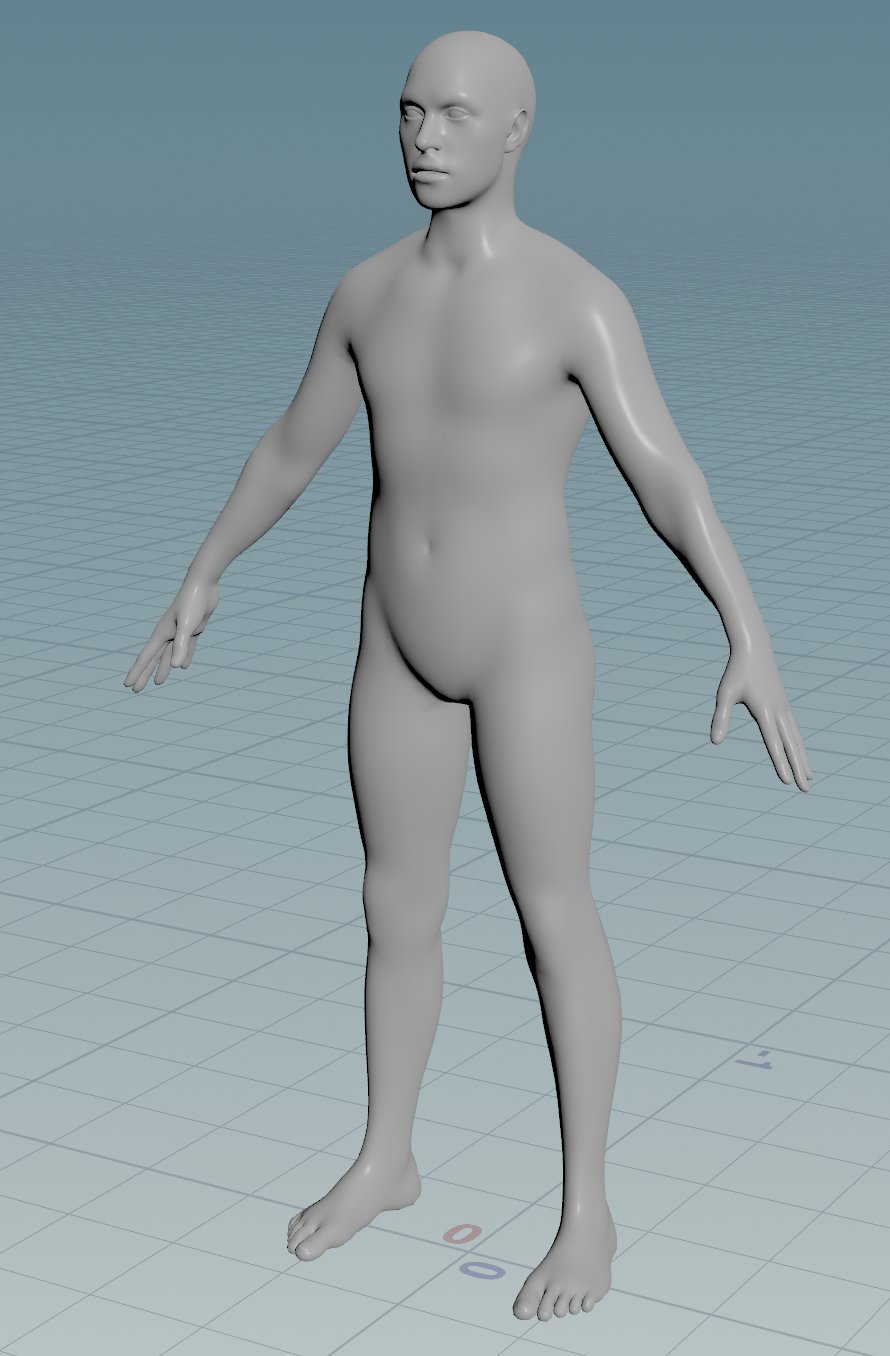

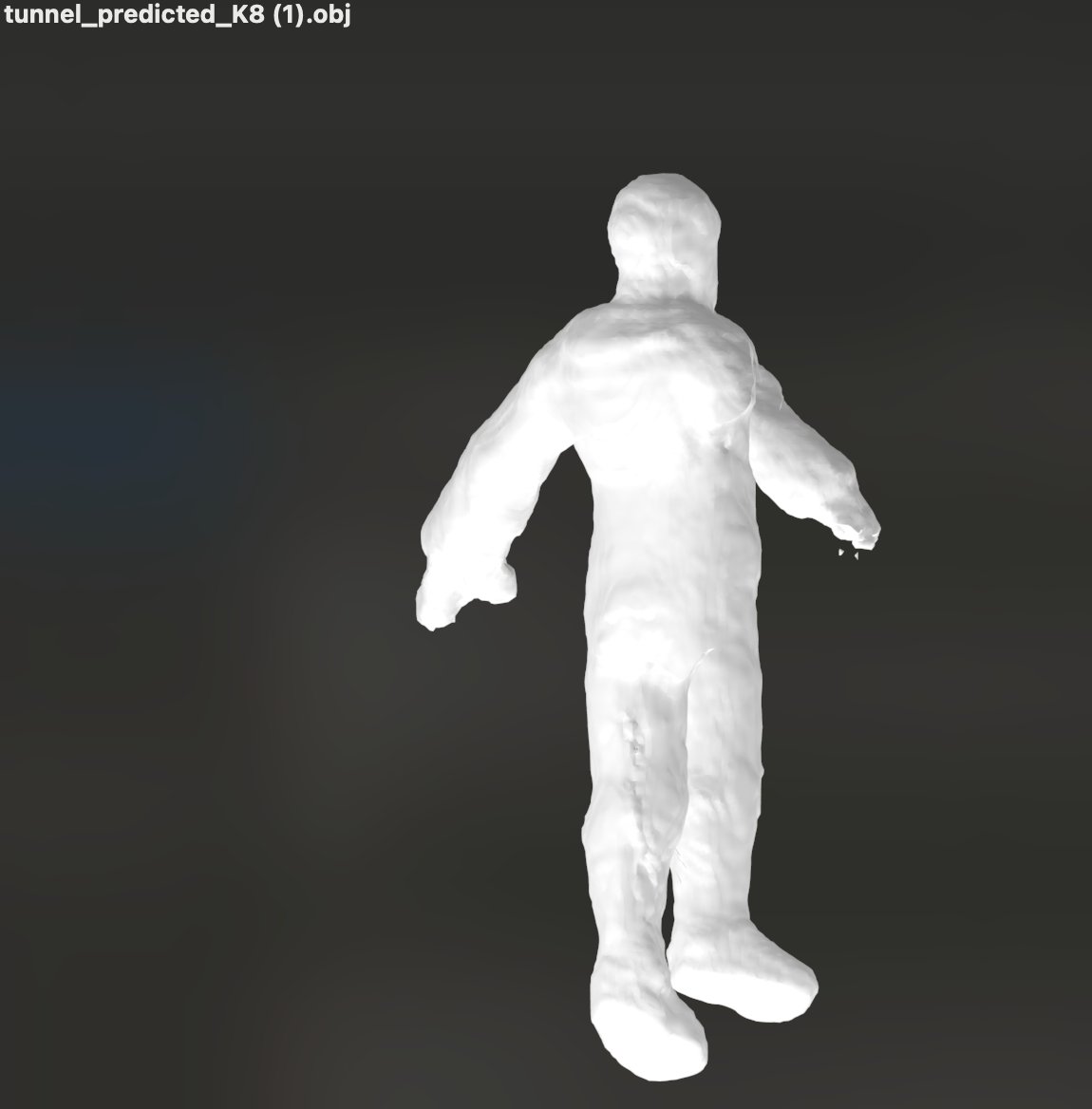

OOD · humanoid. Head, shoulders, outstretched arms, torso, legs, feet. Surface is rough — no fingers, mushy face — but the topology is unmistakably humanoid.

input · never seen

phase-12 output · K=8

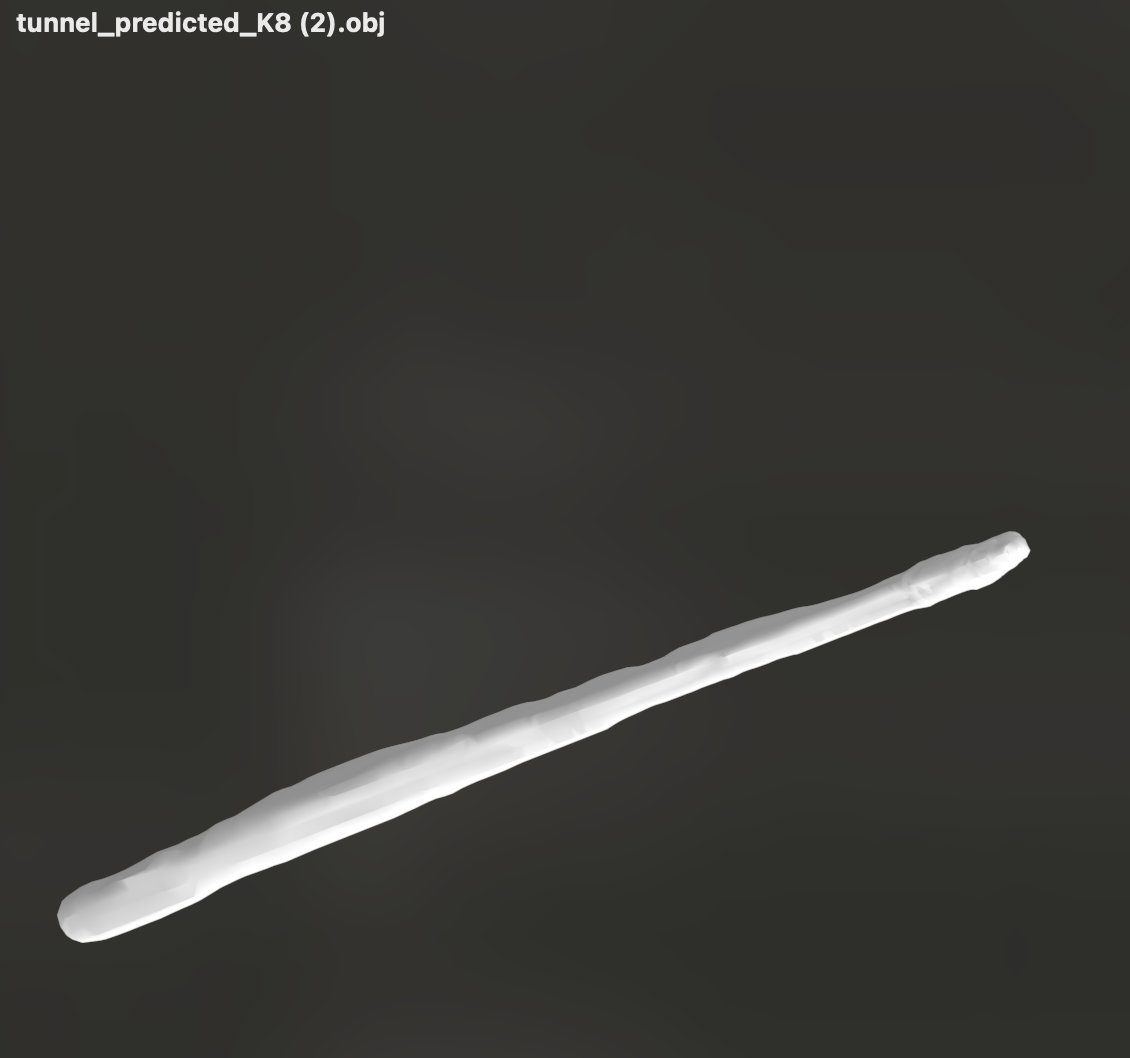

OOD · tunnel. An elongated rod. The 976-shape model recognises the long-thin geometry — compare the 20-shape result above, which collapsed to a humanoid entirely.

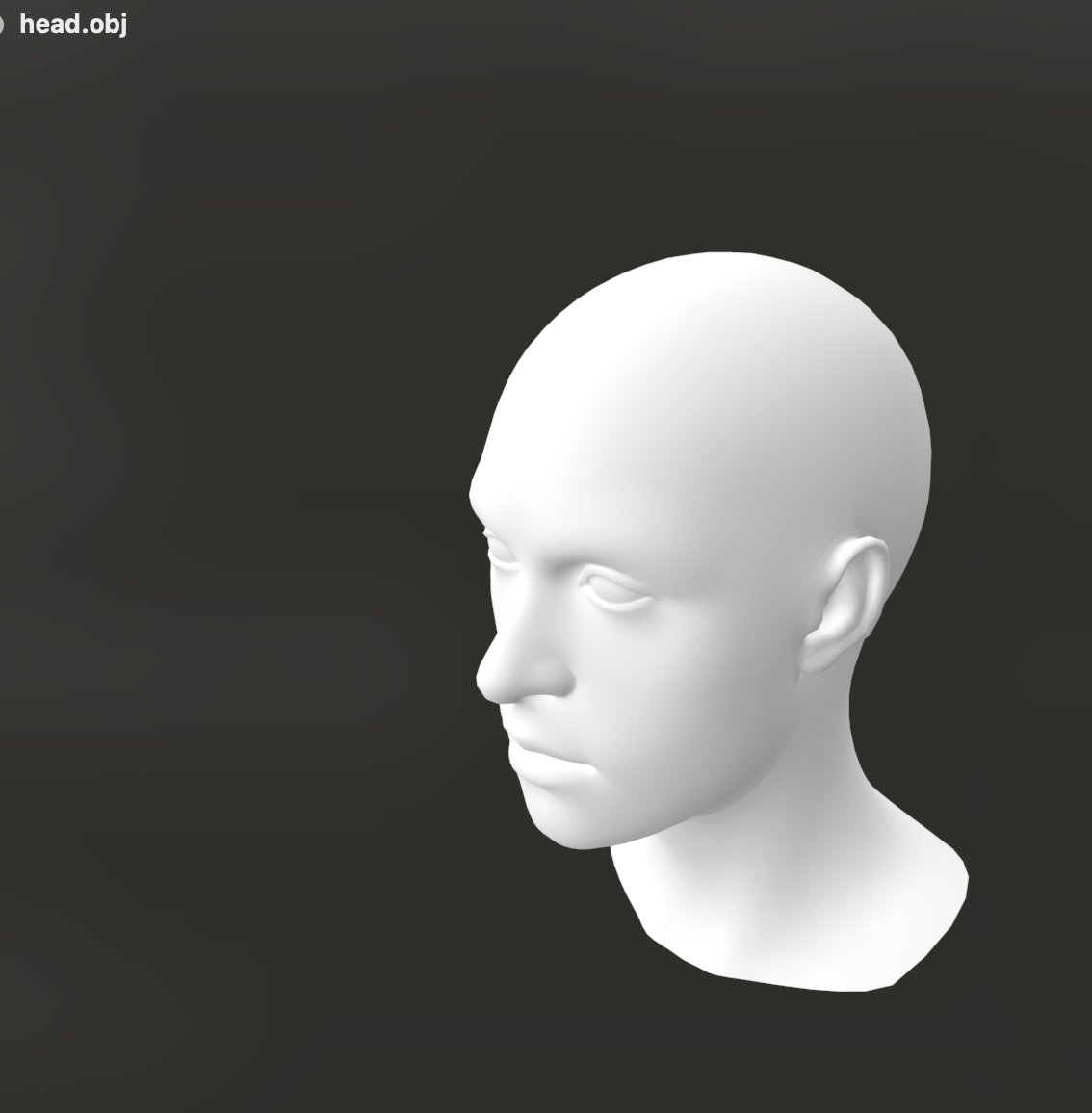

input · never seen

phase-12 output · K=8

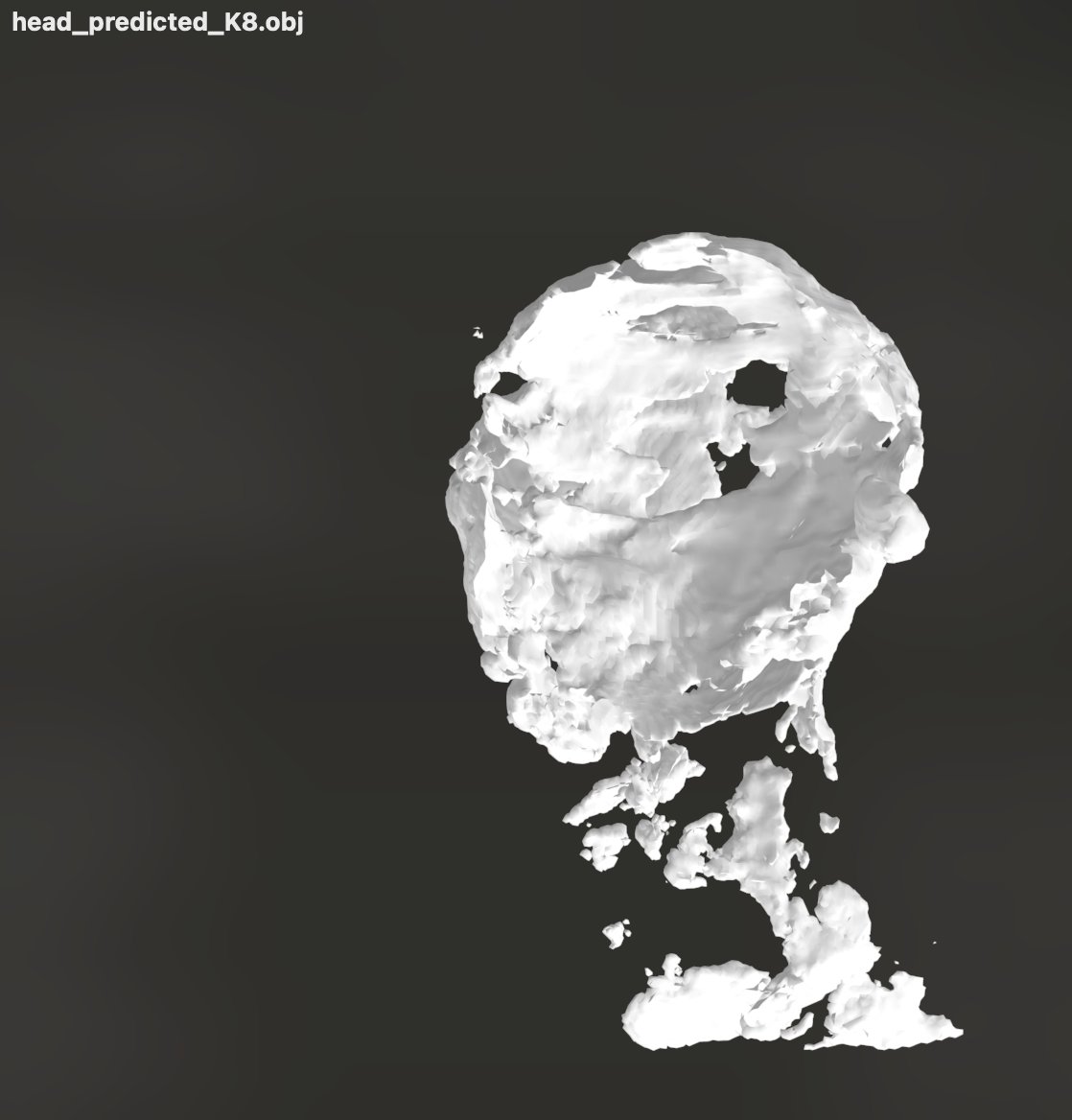

OOD · head bust. Head-on-shoulders topology with eye-socket-like depressions. Below the head the neck/shoulder region degrades into noise — the model learned "head-like" but not "cleanly attached to a torso".

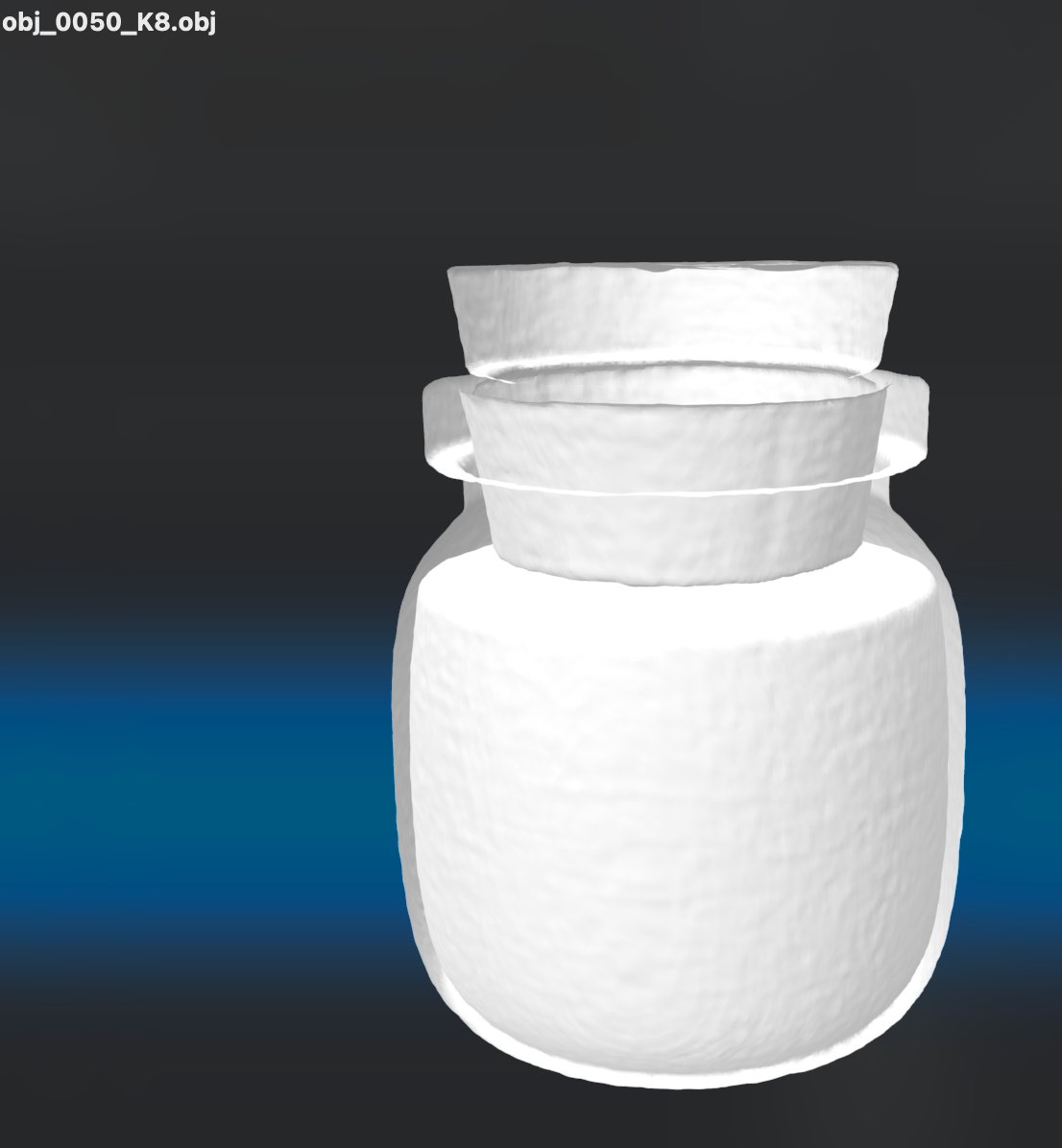

obj_0050 vase · K = 8. A jar/vase with a lidded top — convex body reconstructs cleanly, the lip is rougher.

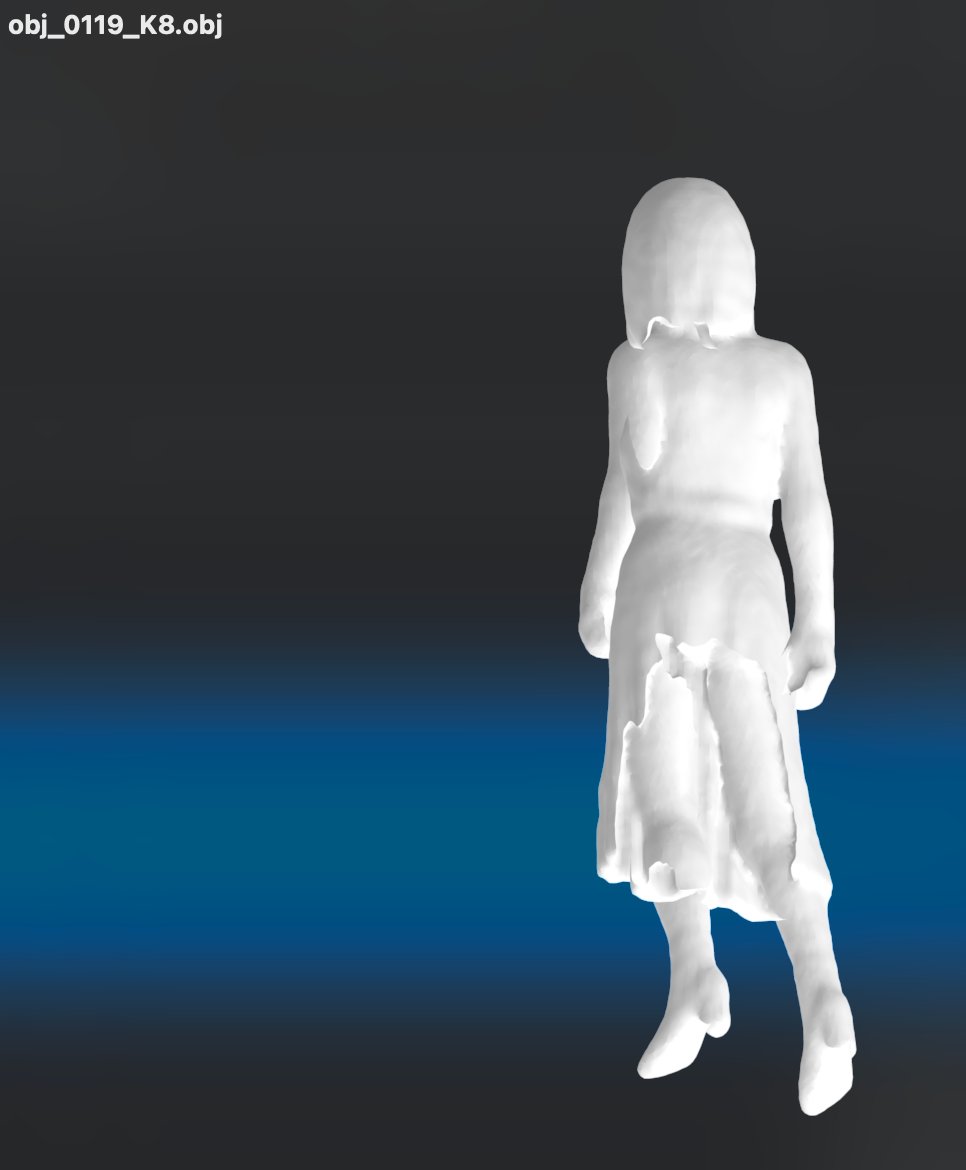

obj_0119 · K = 8. A clothed standing figure — head, torso, a flared skirt and feet. The skirt's lower edge frays into noise; the upper body holds.

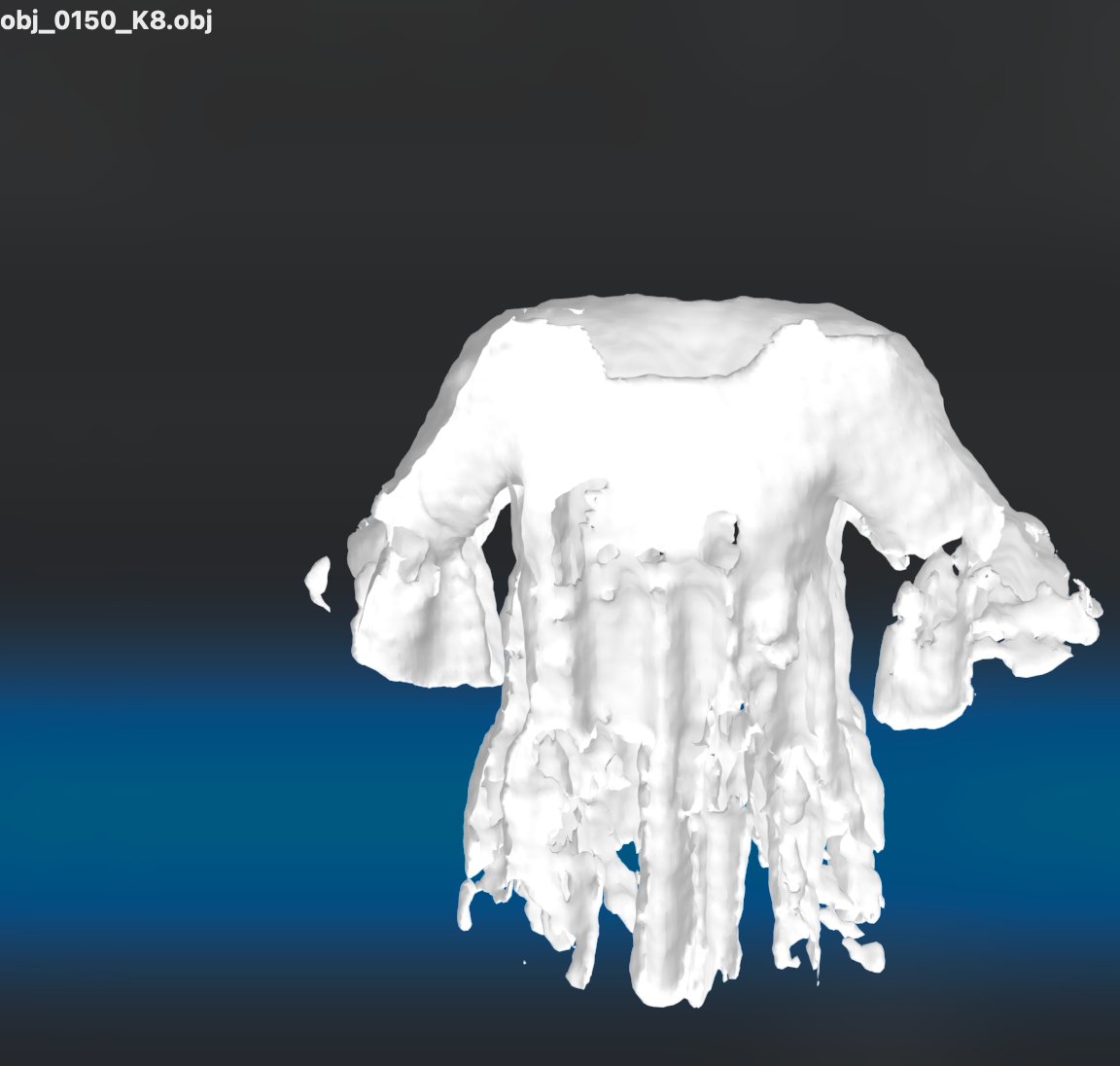

obj_0150 · K = 8. A sleeved garment-like form. Gross silhouette is recovered; the hem and sleeves dissolve into stringy artefacts — the expected failure mode at this data scale.
